Technical Specification

TYPE

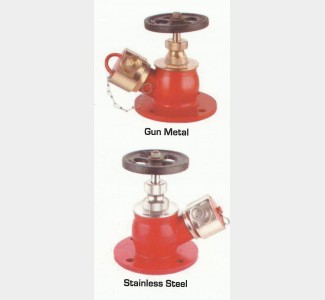

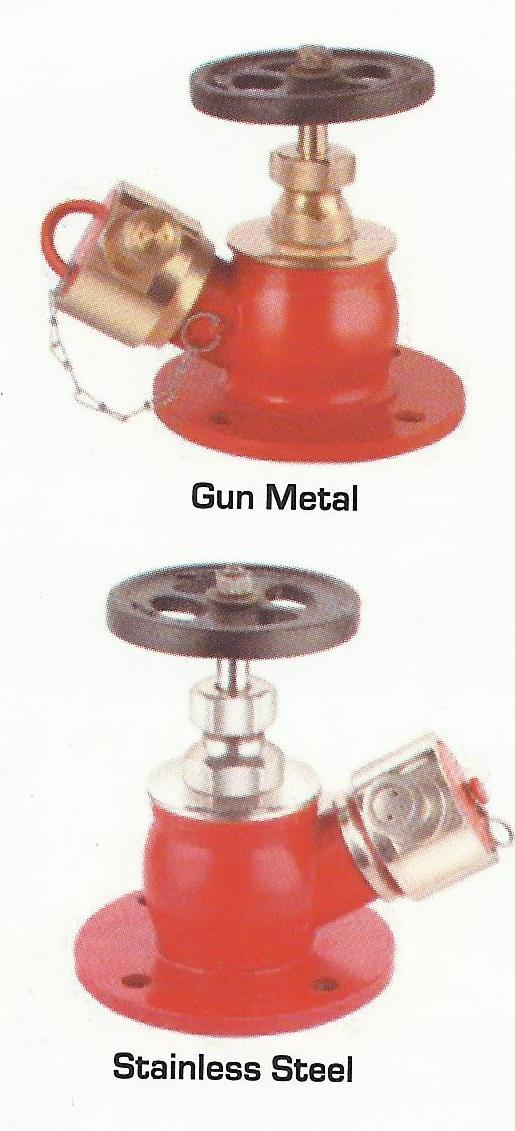

Gun Metal

Stainless Steel

BIS SPECIFICATION

IS 5290

IS 5290

MATERIAL OF CONSTRUCTION

BODY SEAT

LTB2 (IS 318)

S.S (IS 3444)

WORKING PARTS OUTLET

LTB2 (IS 318)

S.S (IS 3444)

RUBBER WASHERS

IS 937 (Type -A)

IS 937 (Type -A)

SPRING

IS 7608

IS 6528

CAST IRON WHEEL

IS 210

IS 210

GLAND PACKING ASBESTOS THREAD

IS 4687 (Type - 3)

IS 4687 (Type - 3)

PERFORMANCE

HYDRAULIC TEST OF BODY

21 Kg/cm2

21 Kg/cm2

HYDRAULIC TEST OF SEAT

14 Kg/cm2

14 Kg/cm2

FLOW RATE at 7 kg/cm2

900 LPM

900 LPM
